Set up a Static IP User VPN for Whitelisting, with WireGuard and Netmaker
This guide is intended for IT administrators who want to route user traffic through a static IP address for whitelisting purposes.
Why this is useful:
Provide support staff with a single IP to whitelist on a customer firewall so support traffic can reach on-site services.
Give a customer a single outbound, whitelisted IP by installing the VPN client locally and routing outbound traffic through your endpoint.

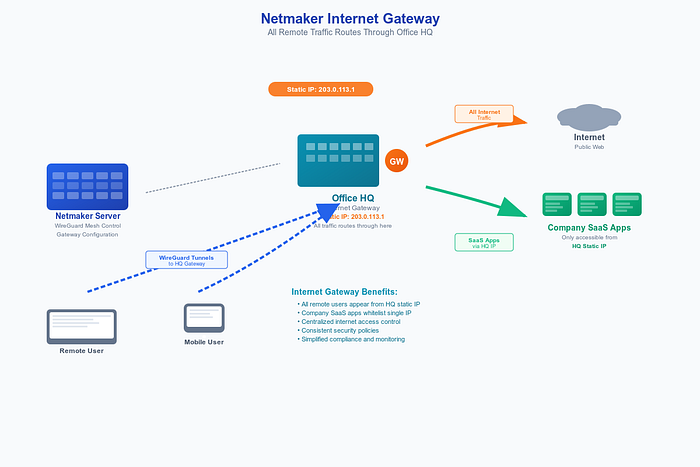

Netmaker lets you deploy an endpoint and route all internet-bound traffic through it; that endpoint’s public IP is what you can whitelist on firewalls. Follow the steps below.
1
Log into your Netmaker dashboard
In your Netmaker dashboard (on-prem or cloud) you will see a Node already deployed. In the cloud version you select a region for your endpoint. On-prem, the server can act as an endpoint.
You can use the existing endpoint to route traffic, or deploy your own if you have a specific IP you want to use.
Netmaker dashboard screenshot
2
(optional) Deploy an endpoint
If you want to use a pre-existing IP, deploy the netclient on a device with that IP (note: must run Linux).
Click the “+Add device” button in the dashboard and follow the steps.
Add device screenshot
3
Set as Gateway to Internet
Once the node is visible in your dashboard, set it as a Gateway to route traffic from other VPN devices to the internet.
Navigate to the “Gateways” screen.
Click “+ Create Gateway” and select the node.
4
Invite Users
As an administrator, invite users to use the VPN:
Add their email addresses (or create usernames manually).
Grant them access to the platform. (If using Pro, you can enable IDP sync to join automatically.)
When inviting, select “Service Users” — this grants only the ability to use the VPN client.
Add them to the group with access to the network (typically “[network name] User Group”).
Click “Create User Invites”.
5
User Access
Users need to:

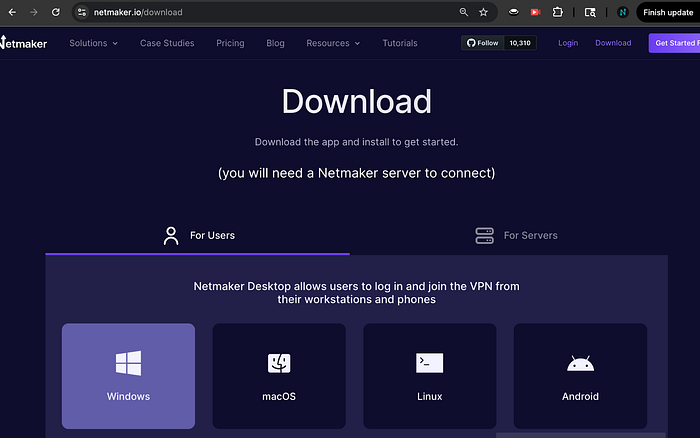

Download the VPN client from: http://netmaker.io/download
Install the client.
Log in with their credentials (username/password or OAuth).
Select the network and toggle to connect/disconnect.
While connected, all the user’s internet traffic will flow through the endpoint you deployed.
Client download/connection screenshots
6
That’s it!
Use the public IP of the endpoint when whitelisting traffic, and your users will have access.
